Welding robot industrial remote control
Specification
| Model | DH-Z20F |
| Transmitter Function | 20 single-speed buttons |
| Size | 28.8×10.8×5.5cm |
| Transmitter Weight | 1.5kg |
| Transmitting fraquency | 433MHz |
| Frequency channel | 50~256 |
| Controlling distance | ≥100m/can be customized |
| Direction of movement | Up, down, East, South, West, North |
| Transmitter Antenna | inside |
Receiver
Antenna | Inside / optional external antenna |
| Button life | ≥ 1 million times |
| Panel material | stainless steel |
| Button material | stainless steel |
| Shell material | 90% industrial reinforced nylon plastic
+ 10% industrial chemical fiber |
| Transmitter power supply | DC4.5 (3 pcs alkaline batteries) |
| Receiver power supply | DC12V/24V or AC 36V/220V/380V
(AC by external transformer) |
| Temperature range | -25℃~+75℃ |
| Button Text | Arrow / English / Chinese |
| Enclosure protection class | IP65 |
| Application | Gantry crane,JCB,Hoist,Port crane,Cantilever crane,Ship crane,Bridge erecting machine,Beam lifter,Lifting platform,Windlass,Shearing machine,Sand Screening Machine,Industrial furnace door,Winch etc. |
Product Description

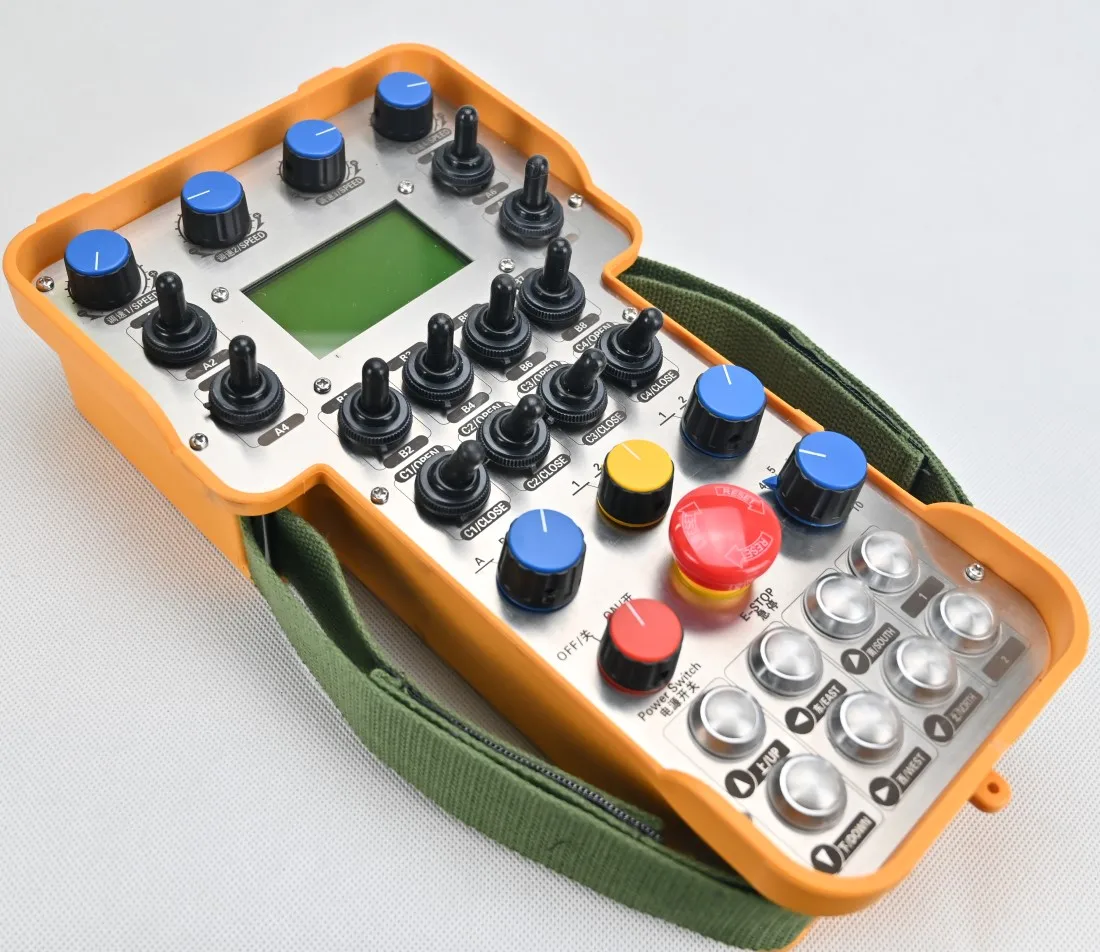

Customized buttons Industrial Wireless Remote Control
Multi-function remote control
Industrial wireless remote control, the complete set includes 1 transmitter + 1 receiver, the remote control distance is provided according to 100 meters, the receiver is built-in (304 rail snap-fit installation), with an external extended suction cup antenna.
Product Features
1. Stable control signals will ensure no interference during use. The unique signal is encrypted and coded, and there is no interference when using multiple sets of remote controllers in an environment.
2. Stainless steel panel and buttons, more resistant to be broken and smudge.
3. The transmitter is sealed with silicone rubber ring, which is good waterproof.
Emergency stop button for safety
Default configuration
1. Transmitter * 1 piece
2. Receivers * 1 piece
3. The receiver comes with 1m cable connector
4. Operation and Maintenance Manual
Attentions
1. Due to transportation requirements, the product is not equipped with battery.
2. When you order, please remark the voltage, DC12V/24V or AC220V/380V(AC by external transformer).
Warranty & Service
1. Customized logo and trademark are warmly-welcomed.
2. Good after-sale services offered.
3. 1 year warranty period, spare parts supply for free.
4. 100% QC inspection before shipment.
Packing & Delivery
Product Tags:
|
|
Welding robot industrial remote control Images
|
